Kód: c_203892
Individual cable lengths are often required nowadays. In order to meet these demands, Weidmüller offers a wide range of plug-in connectors for custom assembly.br/Male plugs and female socket for customisable assembly for M8, M12, M16 and 7/8" connections which are highly robust and ideally suited to machine engineering, for instance. The M12 plug-in connectors offer a choice of 5 different connection systems.br/The IDC is simple and quick to assemble since this technology allows the conductor to be inserted directly into the terminal point, without crimping or having to strip the insulation. It also has excellent functional security.
Parametry
Množství: 1 ks
Jmenovitý proud - filtr: 4 A
Krytí: IP67
Připojení (součástky): IDC
Strana připojení A (Sensor Aktor): zástrčka M12, zahnutá
Strana připojení B (senzor, aktuátor): přizpůsobitelná
Typ upevnění: šroubovací
Počet pólů: 4
Typ závitu, šířka připojení: M12
Číslo výrobce: 1812870000

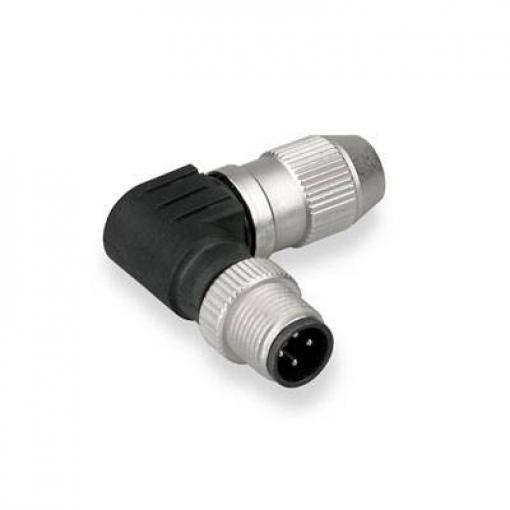

Typ (výrobce): SAISW-4-IDC M12
Jmenovitý proud: 4 A
Jmenovité napětí: 32 V
Provedení konektoru: zástrčka, zahnutá
Splňuje RoHS: ano
Teplota (max.): +85 °C
Teplota (min.): -25 °C
Kategorie produktu: neupravený zástrčkový konektor pro senzory - aktory
EAN: 4032248296422
