Kód: c_202308
Individual cable lengths are often required nowadays. In order to meet these demands, Weidmüller offers a wide range of plug-in connectors for custom assembly.br/Male plugs and female sockets for customisable assembly for M8, M12, M16 and 7/8" connections which are highly robust and ideally suited to machine engineering, for instance. The 7/8" round plug-in connectors can transmit large amount of power.br/The screw connection can be used in a wide range of applications. With this technology the conductor, optionally with wire-end ferrules, can be plugged into connection elements and secured with a screw. It is the classic, cheapest form of connection technology that also supports multi-conductor connections.
Parametry
Množství: 1 ks
Jmenovitý proud - filtr: 9 A
Připojení (součástky): šroubová svorka
Strana připojení A (Sensor Aktor): 7/8" zástrčka, zahnutá
Strana připojení B (senzor, aktuátor): přizpůsobitelná
Typ upevnění: šroubovací
Počet pólů: 4
Typ závitu, šířka připojení: 7/8"
Číslo výrobce: 1292040000

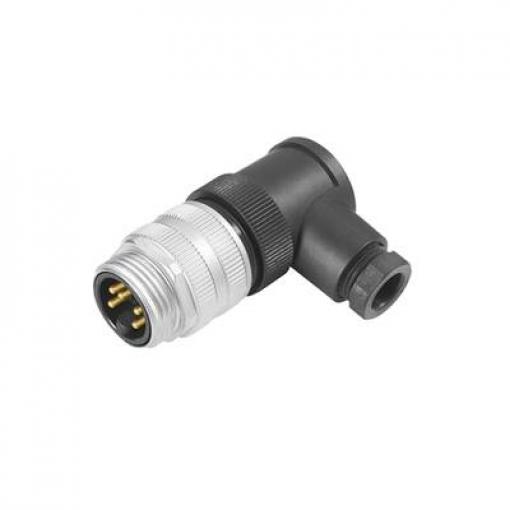

Typ (výrobce): SAISW-4/11-7/8"
Jmenovitý proud: 9 A
Jmenovité napětí: 250 V
Provedení konektoru: zástrčka, zahnutá
Splňuje RoHS: ano
Teplota (max.): +90 °C
Teplota (min.): -30 °C
Kategorie produktu: neupravený zástrčkový konektor pro senzory - aktory
EAN: 4050118086911
