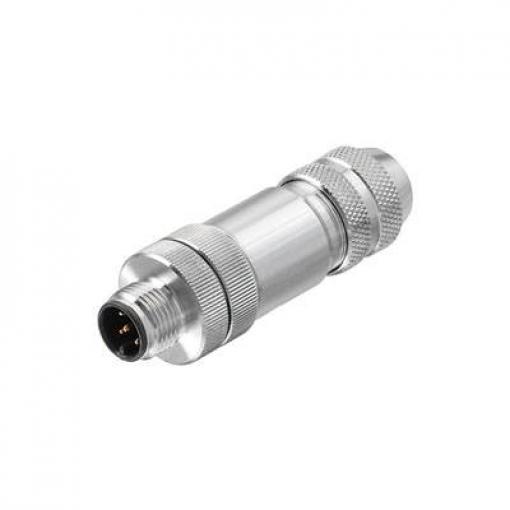

Individual cable lengths are often required nowadays. In order to meet these demands, Weidmüller offers a wide range of plug-in connectors for custom assembly.br/Male plugs and female socket for customisable assembly for M8, M12, M16 and 7/8" connections which are highly robust and ideally suited to machine engineering, for instance. The M12 plug-in connectors offer a choice of 5 different connection systems.br/The screw connection can be used in a wide range of applications. With this technology the conductor, optionally with wire-end ferrules, can be plugged into connection elements and secured with a screw. It is the classic, cheapest form of connection technology that also supports multi-conductor connections.
Parametry
Množství: 1 ks
Jmenovitý proud - filtr: 2 A
Krytí: IP67
Připojení (součástky): šroubová svorka
Strana připojení A (Sensor Aktor): zástrčka M12, rovná
Strana připojení B (senzor, aktuátor): přizpůsobitelná
Typ upevnění: šroubovací
Počet pólů: 8
Typ závitu, šířka připojení: M12
Číslo výrobce: 1118910000
Typ (výrobce): SAISM-8/11S-M12
Jmenovitý proud: 2 A
Jmenovité napětí: 60 V
Provedení konektoru: zástrčka, rovná
Splňuje RoHS: ano
Teplota (max.): +80 °C
Teplota (min.): -25 °C
Kategorie produktu: neupravený zástrčkový konektor pro senzory - aktory
EAN: 4032248900084
