Kód: c_202465

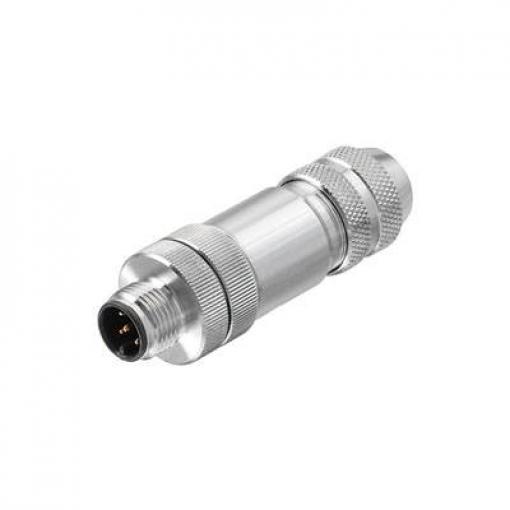

Individual cable lengths are often required nowadays. In order to meet these demands, Weidmüller offers a wide range of plug-in connectors for custom assembly.br/Male plugs and female sockets for customisable assembly for M8, M12, M16 and 7/8" connections which are highly robust and ideally suited to machine engineering, for instance. The M16 round plug-in connectors can transmit large amounts of power and have set the standard in the market for many years.br/The solder connection provides high contact density on a small area. With this technology the stripped conductor is soldered to the contacts, producing good electrical conductivity.
Parametry
Množství: 1 ks
Jmenovitý proud - filtr: 5 A
Krytí: IP40
Připojení (součástky): kabel bez konektorů
Typ upevnění: šroubovací
Počet pólů: 8
Typ závitu, šířka připojení: M16
Číslo výrobce: 1304430000
Typ (výrobce): SAIS-M16-8/9
Jmenovitý proud: 5 A
Jmenovité napětí: 60 V
Průřez připojovacího vodiče (max.): 0.75 mm²
Provedení konektoru: zástrčka, rovná
Splňuje RoHS: ano
Kategorie produktu: neupravený zástrčkový konektor pro senzory - aktory
EAN: 4050118103564
