Kód: c_203515

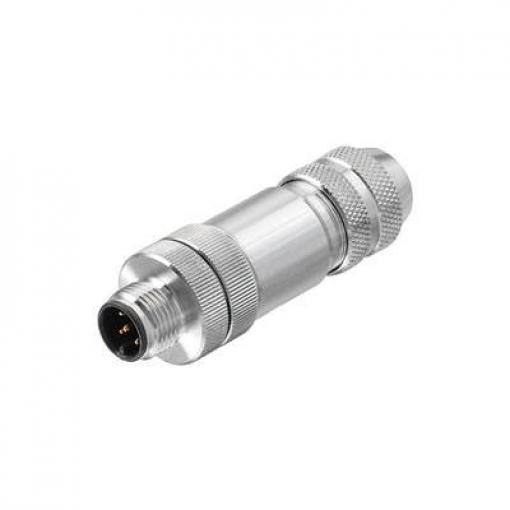

Individual cable lengths are often required nowadays. In order to meet these demands, Weidmüller offers a wide range of plug-in connectors for custom assembly.br/Male plugs and female socket for customisable assembly for M8, M12, M16 and 7/8" connections which are highly robust and ideally suited to machine engineering, for instance. The M12 plug-in connectors offer a choice of 5 different connection systems.br/Tension-clamp connection delivers excellent functional security and reduced installation times. With this technology the conductor is plugged into the tension clamp without a wire-end ferrule (optionally with wire-end ferrule). The connection between the conductor and tension clamp is vibration-resistant and boasts long-term stability.
Parametry
Množství: 1 ks
Jmenovitý proud - filtr: 4 A
Krytí: IP67
Připojení (součástky): šroubová svorka
Strana připojení A (Sensor Aktor): zásuvka M12, rovná
Strana připojení B (senzor, aktuátor): přizpůsobitelná
Typ upevnění: šroubovací
Počet pólů: 4
Typ závitu, šířka připojení: M12
Číslo výrobce: 1784740002
Typ (výrobce): SAIBM-4/8S-M12 4P A-ZF
Jmenovitý proud: 4 A
Jmenovité napětí: 250 V
Provedení konektoru: zásuvka, rovná
Splňuje RoHS: ano
Teplota (max.): +85 °C
Teplota (min.): -25 °C
Kategorie produktu: neupravený zástrčkový konektor pro senzory - aktory
EAN: 4032248647965
