Kód: c_282544

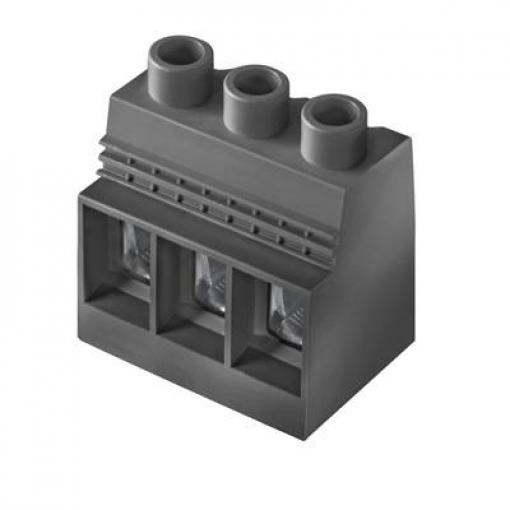

The high-current PCB connection for more power on board: 150 A /1000 V with wires up to 50 mm², transmitted right to the PCB!br / br / The LXXX 15.0 – with its proven steel clamping-yoke technology in a compact standard housing – integrates the latest market requirements for security, power density and miniaturization in power electronics. It connects these requirements into an efficient solution for the entire value-creation chain – including development, production, installation and maintenance.br / br / The function and form of the application's connection method plays a key role. It influences the application's design, reliability, usability and costs. With the Substitution of br / For example, with the replacement of complex constructions involving bolts or bus bars,the PCB can be transformed into a system platform that is both consistent and sustainable into the future – even for high-current applications.br / br / The LXXX 15.0 reduces size and complexity while at the same time improving application integration. In so doing, it fulfils the requirements of power electronics better than the established mechanisms and connection elements.
Parametry
Množství: 10 ks
Barva: černá
Vnější výška: 56 mm
Vnější délka: 31 mm
Vnější šířka: 61 mm
Jmenovitý proud - filtr: 126 A
Průmyslové zboží: Ano
Připojení (součástky): do DPS · šroubová svorka
Směr činnosti: kolmo k DPS
Směr zástrčky: vodorovně k DPS
Řada (svorky pro tištěné spoje): LXXX
Číslo výrobce: 1047150000
Typ (výrobce): LXXX 15.00/04/90 4.5SN BK BX
Jmenovitý proud: 126 A
Jmenovité napětí: 600 V
AWG max.: 1
AWG min.: 20
Rastr (rozteč): 15 mm
Max. flexibilní průměr: 35 mm²
Minimální průřez flexibilní: 0.5 mm²
Pevný průřez max.: 16 mm²
Minimální průřez pevný: 0.5 mm²
Pólů: 4
Počet kontaktů v řadě: 4
Délka izolace (max.): 18 mm
Délka odizolace: 18 mm
Typ: LXXX 15.00/04/90 4.5SN BK BX
Ochrana drátu: Ano
Počet řádků: 1
Materiál kontaktu: slitina mědi, pozinkovaná
Hmotnost: 122.8 g
Kategorie produktu: šroubová svorkovnice
EAN: 4032248784004
