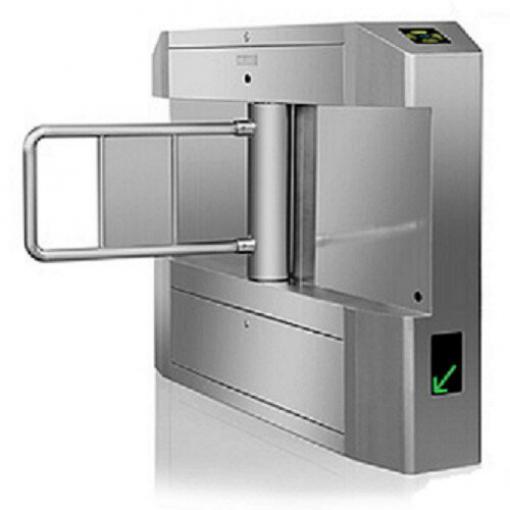

Branka 21 - Plně automatická branka
Kompletní sada branky s plnou automatikou, včetně signalizace a řídící jednotky.
Tělo branky z nerezu.
Popis funkcí:
Plně automatický
Obousměrný průchod
Indikátor povolení a zamezení vstupu (červená x zelená)
Nastavení času průchodu - pokud v nastaveném čase osoba neprojde, průchod zůstane zavřený
Možnost připojení RFID čteček pro průchod tam i zpět
Možnost připojení externího tlačítka např. z recepce
Rozměry:
š1230, h280, v1000mm
Hmotnost 70kg
Napájení 230V
Motor 12VDC
Functions & Features (Full-automatic Swing Barrier)
1. Both directions can be set as controlled mode or free mode.
2. NO mode & NC mode can be switched over by users easily & freely.
3. Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
4. Self-examine Function: it is convenient for users to maintain and use.
5. Tailgating-detection function.
6. Intruding-alarm function.
7. Anti-pinch function: protection against finger entrapment and personal injury.
8. Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
9. With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
10. Each machine can be set by Physical Address (Optional).
11. Equipped with free control software for man-machine interface & control command SDK.
Technical Data
Item / Model WJTB104
Manual or Full-automatic Full-automatic
Material of Housing 304 Stainless Steel
Thickness of Housing 1.50mm
Dimension of Housing (mm) 1320*280*1000mm
Length of Arm (Optional) 500~900mm
Net Weight 57kg
Arm Running Angle 180 degree
Max Load-bearing of Arm 30kg
Swing Direction Double Directions
Driving Electromotor DC electromotor 200w/24v
Input Interface Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V
Communication Interface standard RS485 (distance less than 1200 meters)
Time for Opening or Closing 1 second
Starting time after power on 3 seconds
Automatic reset time after fault 10 seconds
Transit Speed 30-40 people per minute
Working Environment indoor or outdoor with shelter
Working Temperature -25℃~+50℃
Relative Humidity ≤95% with no condensation
Branka 21 - Plně automatická branka
Kompletní sada branky s plnou automatikou, včetně signalizace a řídící jednotky.
Tělo branky z nerezu.
Popis funkcí:
Plně automatický
Obousměrný průchod
Indikátor povolení a zamezení vstupu (červená x zelená)
Nastavení času průchodu - pokud v nastaveném čase osoba neprojde, průchod zůstane zavřený
Možnost připojení RFID čteček pro průchod tam i zpět
Možnost připojení externího tlačítka např. z recepce
Rozměry:
š1230, h280, v1000mm
Hmotnost 70kg
Napájení 230V
Motor 12VDC
Functions & Features (Full-automatic Swing Barrier)
1. Both directions can be set as controlled mode or free mode.
2. NO mode & NC mode can be switched over by users easily & freely.
3. Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
4. Self-examine Function: it is convenient for users to maintain and use.
5. Tailgating-detection function.
6. Intruding-alarm function.
7. Anti-pinch function: protection against finger entrapment and personal injury.
8. Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
9. With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
10. Each machine can be set by Physical Address (Optional).
11. Equipped with free control software for man-machine interface & control command SDK.
Technical Data
Item / Model WJTB104
Manual or Full-automatic Full-automatic
Material of Housing 304 Stainless Steel
Thickness of Housing 1.50mm
Dimension of Housing (mm) 1320*280*1000mm
Length of Arm (Optional) 500~900mm
Net Weight 57kg
Arm Running Angle 180 degree
Max Load-bearing of Arm 30kg
Swing Direction Double Directions
Driving Electromotor DC electromotor 200w/24v
Input Interface Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V
Communication Interface standard RS485 (distance less than 1200 meters)
Time for Opening or Closing 1 second
Starting time after power on 3 seconds
Automatic reset time after fault 10 seconds
Transit Speed 30-40 people per minute
Working Environment indoor or outdoor with shelter
Working Temperature -25℃~+50℃
Relative Humidity ≤95% with no condensation
Parametry
Hmotnost: 85
