Kód: c_186027

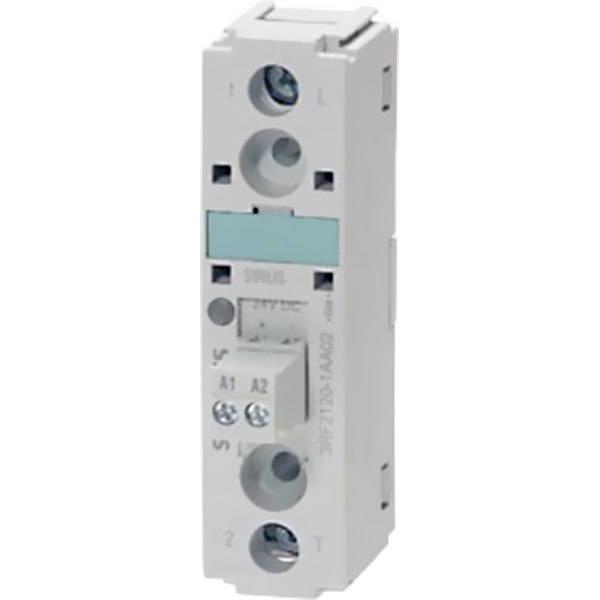

Semiconductor relay, 1-phase 3RF2 Overall width 22.5 mm, 30 A 24-230 V / 24 V DC screw terminal solid-state relay SIRIUS 3RF21 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
Parametry
Množství: 1 ks
Rozsah řídicího napětí: 24 - 24 V/DC
Krytí: IP20
Typ (výrobce): 3RF2130-1AA02
Řídicí napětí (max.): 24 V/DC
Řídicí napětí (min.): 24 V/DC
Zatěžovací proud: 30 A
Spínací napětí (max.): 230 V/AC
Spínací napětí (min.): 24 V/AC
Typ: 3RF2130-1AA02
Splňuje RoHS: ano
Provozní napětí (text): 24 - 230 V/AC
ECLASS Feature Group ID: 27-37-10-14
ECLASS Feature System Name: ECLASS-9.1
ETIM FeatureGroupID: EC002055
ETIM System Name: ETIM-8.0
Kategorie produktu: polovodičové relé
EAN: 4011209573819
