Kód: c_2263720

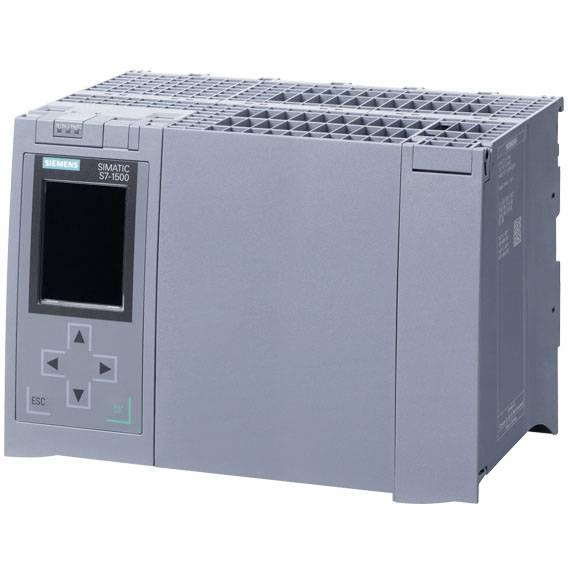

SIMATIC S7-1500H, CPU 1517H-3 PN, central processing unit with 2 MB work memory for program and 8 MB for data, 1st interface: PROFINET RT with 2-port switch, 2nd interface: PROFINET, 3rd/4th interface: H-SYNC, SIMATIC Memory Card required The SIMATIC® S7-1500 Advanced Controller sets new standards with regard to system performance and usability. The seamless Integration of the SIMATIC S7-1500 Controller in the Totally Integrated Automation Portal (TIA Portal) offers advantages, such as common data storage, a uniform operating concept and central services. This makes the use of universal functions particularly easy. With its short system response times, the controller boosts productivity in the twinkling of an eye. For you, this means more flexibility and a shorter product launch time. Various CPU versions, each in several performance classes, are available for SIMATIC S7-1500. The portfolio firstly covers standard CPUs, some with the option of integrating C/C++ code. The compact CPUs have integrated digital and analog I/Os, and counting inputs and pulse outputs can be measured directly on the CPU. Thanks to the fail-safe CPUs, Standard and Safety programs can be executed on the same controller. The technology CPUs expand the Motion Control functions available in all SIMATIC S7-1500 controllers for demanding solutions. The SIMATIC S7-1500 Advanced Controller is configured using the SIMATIC STEP 7 Professional software. A SIMATIC Memory Card is required for the operation of this module.
Parametry
Rozměry: (d x š x v) 129 x 210 x 147 mm
Vnější výška: 147 mm
Vnější délka: 129 mm
Vnější šířka: 210 mm
Displej: Ano
Číslo výrobce: 6ES75173HP000AB0
Typ (výrobce): 6ES7517-3HP00-0AB0
Provedení: Modulární
Provozní napětí (min.): 19.2 V/DC
Rozhraní: Průmyslový Ethernet · PROFINET
Podporované protokoly: MODBUS; PROFINET IO; TCP/IP
Způsob montáže: Montáž na DIN lištu
Provozní napětí (rozsah): 19.2 - 28.8 V/DC
Provozní napětí (max.): 28.8 V/DC
ECLASS Feature Group ID: 27-24-22-07
ECLASS Feature System Name: ECLASS-9.1
ETIM FeatureGroupID: EC000236
ETIM System Name: ETIM-8.0
Kategorie produktu: CPU pro PLC
EAN: 4047623408024
