Kód: c_1539024

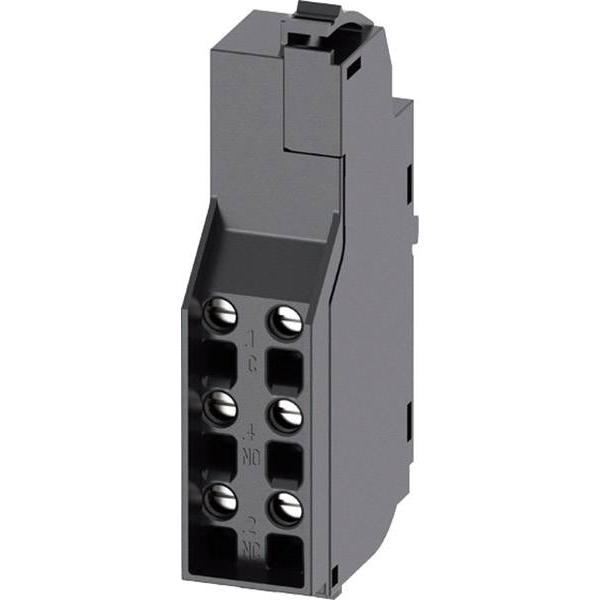

AUXILIARY SWITCH CHANGEOVER CONTACTS TYPE HP (14MM) ACCESSORY FOR 3VA1 and 3VA20 up to 3VA25 Internal accessories for 3VA molded-case circuit breakers. With the internal accessories for the 3VA molded-case circuit breaker, you can flexibly cover a multitude of use cases. Thanks to the color and mechanical coding, all components can be installed with failsafe and are consistent across all ranges of the 3VA molded-case circuit breaker. Key features of these accessory components: 1. Flexible use in a wide range of applications. 2. Color coding and physical coding for error-free installation in the accessory pockets of the molded-case circuit breaker. 3. Standard internal accessories for 3VA molded case circuit breakers. 4. Available internal accessories: Auxiliary switches, leading auxiliary switches, tripped and short-circuit signaling switches (3VA1 only), auxiliary trip units (voltage, residual current, undervoltage and universal release), cylinder lock.
Parametry
Množství: 1 ks
Rozměry: (š x v x h) 14 x 56 x 30 mm
Rozměr, hloubka: 30 mm
Vnější výška: 56 mm
Vnější šířka: 14 mm
Vhodné pro značku (relé): Siemens
Vhodné pro sérii relé: Siemens 3VA
Rozsah nastavení (proud): 10 A (max)
Typ kontaktu: 2 přepínací kontakty
Počet pólů (LOV): 2pólový
Typ (výrobce): 3VA9988-0AA11
Rozsah nastavení proudu (max.): 10 A
Spínací napětí (max.): 600 V/AC
Splňuje RoHS: ano
ECLASS Feature Group ID: 27-37-92-01
ECLASS Feature System Name: ECLASS-9.1
ETIM FeatureGroupID: EC002498
ETIM System Name: ETIM-8.0
Kategorie produktu: pomocný spínač
EAN: 4042949000006
