Kód: c_2262283

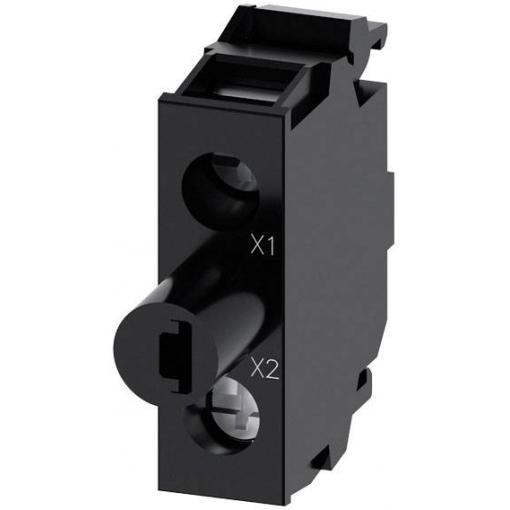

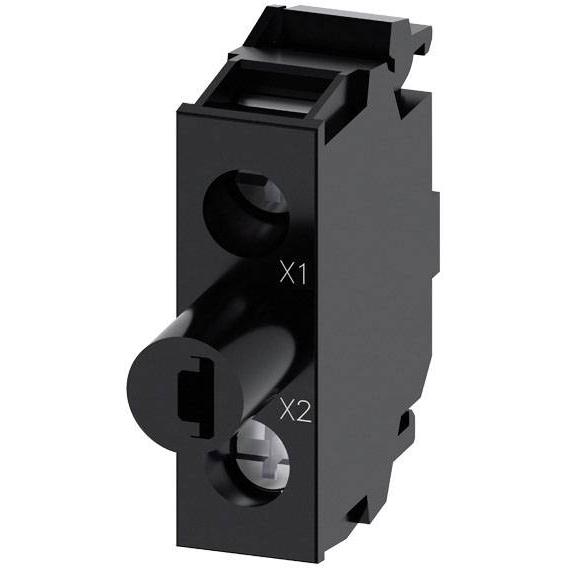

LED module with integrated LED 24 V AC/DC, yellow, screw terminal, for floor mounting, Minimum order quantity 5 or a multiple thereof LED module SIRIUS ACT for illuminating SIRIUS ACT pushbuttons and indicator lights with high luminosity thanks to energy efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, various voltage variants, various types of connection and installation.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Parametry
Množství: 5 ks
Rozměry: (š x v x h) 9.8 x 33.2 x 29.4 mm
Rozměr, hloubka: 29.4 mm
Vnější výška: 33.2 mm
Vnější šířka: 9.8 mm
Krytí: IP20 · IP40
Barvy světla (LED svítidlo): žlutá
Připojení (součástky): šroubovací
Součástí osvětlení: Ano
Typ (výrobce): 3SU1401-2BB30-1AA0
Provedení: s integrovanou LED diodou
Způsob montáže: upevnění na zem
Spínací proud (max.): 25 mA
Spínací napětí: 24 V DC/AC
Dielektrická pevnost: 4 kV
Životnost (elektrická): 100000
Splňuje RoHS: ano
Teplota (max.): +70 °C
Teplota (min.): -25 °C
ECLASS Feature Group ID: 27-37-12-09
ECLASS Feature System Name: ECLASS-9.1
ETIM FeatureGroupID: EC000204
ETIM System Name: ETIM-8.0
Kategorie produktu: LED modul
EAN: 4011209943162
