Kód: c_1379598

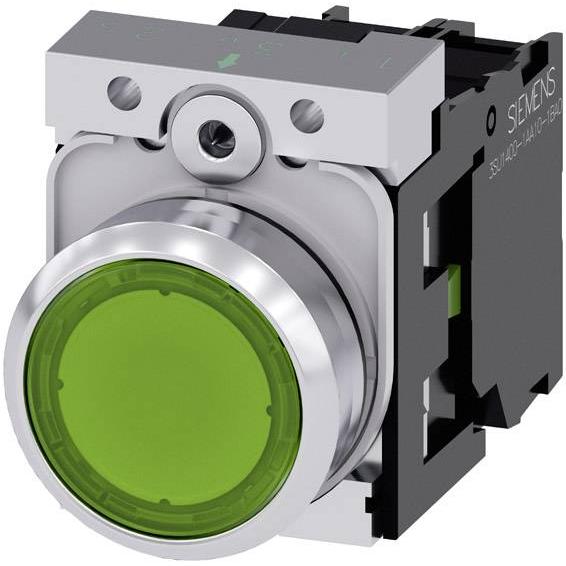

Illuminated pushbutton, 22 mm, round, metal, shiny, green, pushbutton, flat, momentary contact type, with holder, 1 NO, LED module with integrated LED 24 V AC/DC, screw terminal Illuminated pushbuttons SIRIUS ACT for switching and controlling electrical loads.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Parametry
Množství: 1 ks
Rozměry: (š x v) 30 mm x 40 mm
Barva: zelená
Vnější výška: 40 mm
Vnější šířka: 30 mm
Krytí: IP66 · IP67 · IP69K
Typ světelného zdroje: LED
Barvy světla (LED svítidlo): zelená
Připojení (součástky): šroubovací
Typ kontaktu: 1 spínací kontakt
Typ osvětlení: celoplošné podsvícení
Potisk (motiv): žádný
Vlastnosti přepínače/tlačítka: kovový přední prstenec · Vysoký lesk · plochý hmatník
Funkce (přepínač/tlačítko): bez aretace
Typ (výrobce): 3SU1152-0AB40-1BA0
Montážní průměr: 22 mm
Spínací napětí: 24 V/DC · 24 V/AC
Forma, tvar (typ): Kulaté
Životnost (mechanická): 3000000
Životnost (elektrická): 10000000
Splňuje RoHS: ano
Teplota (max.): +70 °C
Teplota (min.): -25 °C
Hmotnost: 98 g
ECLASS Feature Group ID: 27-37-12-28
ECLASS Feature System Name: ECLASS-9.1
ETIM FeatureGroupID: EC001028
ETIM System Name: ETIM-8.0
Kategorie produktu: světelné tlačítko
EAN: 4011209958876
