Kód: c_1379624

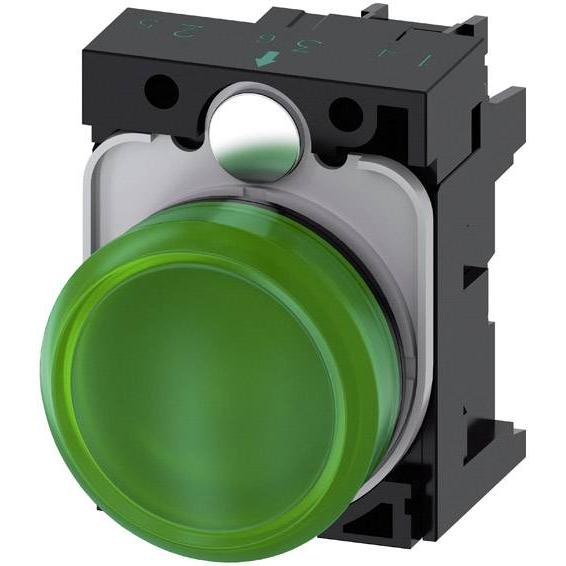

Indicator lights, 22 mm, round, plastic, green, lens, smooth, with holder, LED module, with integrated LED 24 V AC/DC, screw terminal Indicator lights SIRIUS ACT for signaling switching states or faults in systems with high luminosity, thanks to energy-efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Parametry
Množství: 1 ks
Rozměry: (Ø x v) 29.45 mm x 40 mm
Barva: zelená
Vnější Ø: 29.45 mm
Vnější výška: 40 mm
Vnější šířka: 30 mm
Třída energetické účinnosti (kalk.): n.rel.
Krytí: IP66 · IP67 · IP69 / IP69K
Připojení (součástky): šroubovací
Třída energetické účinnosti 2021: n.rel.
Součástí osvětlení: Ano
Vlastnosti přepínače/tlačítka: plochý
Typ (výrobce): 3SU1102-6AA40-1AA0
Provedení: Plast
Montážní průměr: 22 mm
Provozní napětí: 24 V/AC · 24 V/DC
Splňuje RoHS: ano
Teplota (max.): +70 °C
Teplota (min.): -25 °C
ECLASS Feature Group ID: 27-37-12-23
ECLASS Feature System Name: ECLASS-9.1
ETIM FeatureGroupID: EC000272
ETIM System Name: ETIM-8.0
Kategorie produktu: světelný hlásič
Certifikace: RoHS
EAN: 4011209957923
