Kód: c_1379588

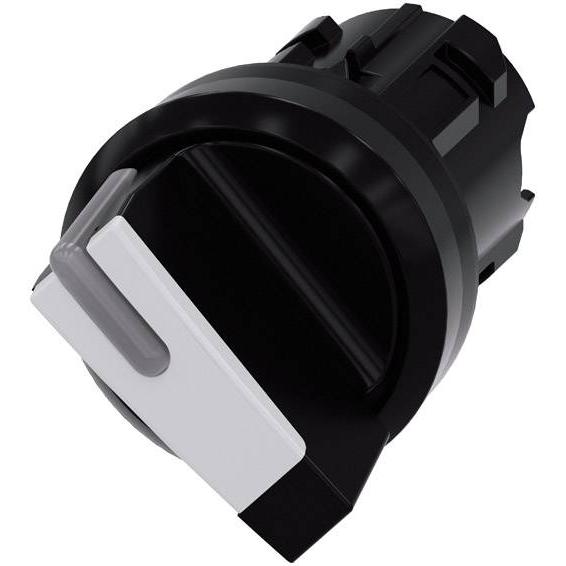

Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, short, 2 switch positions OI, momentary contact type, Actuating angle 45°, 10:30h/12h Selector switches SIRIUS ACT for switching and controlling electrical loads.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, 2-4 switching positions, short/long selector or rotary knob, illuminated/non-illuminated (lighting can also be retrofitted), latching/momentary contact operation.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Parametry
Množství: 1 ks
Rozměry: (š x v) 32.3 mm x 32.3 mm
Barva: černá · bílá
Vnější výška: 32.3 mm
Vnější šířka: 32.3 mm
Krytí: IP66 · IP67 · IP69K
Barvy světla (LED svítidlo): bílá
Připojení (součástky): externí kontaktní prvek · externí LED prvek
Typ osvětlení: symbol šipky
Potisk (motiv): označení šipkami
Vlastnosti přepínače/tlačítka: plastový přední prstenec
Funkce (přepínač/tlačítko): bez aretace
Přepínací pozice: 1x vyp/(zap)
Spínací úhel: 1 x 45 °
Typ (výrobce): 3SU1002-2BC60-0AA0
Montážní průměr: 22 mm
Forma, tvar (typ): Kulaté
Životnost (mechanická): 1 000 000
Splňuje RoHS: ano
Teplota (max.): +70 °C
Teplota (min.): -25 °C
Hmotnost: 20 g
ECLASS Feature Group ID: 27-37-12-13
ECLASS Feature System Name: ECLASS-9.1
ETIM FeatureGroupID: EC000222
ETIM System Name: ETIM-8.0
Kategorie produktu: kloubový spínač
EAN: 4011209956070
