Kód: c_1379402

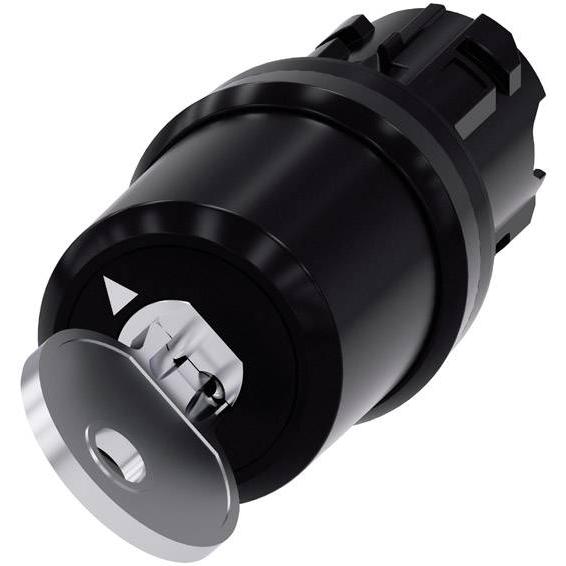

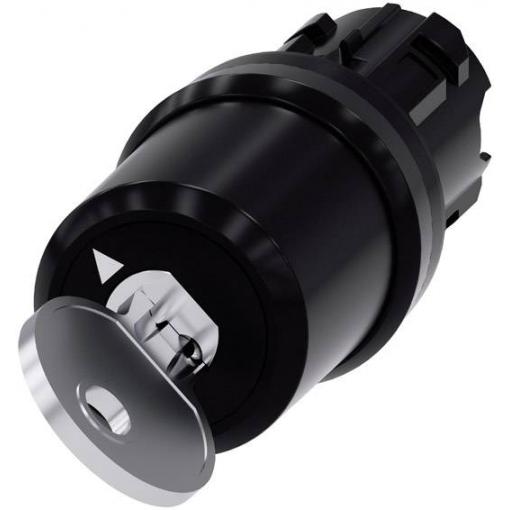

key-operated switch Siemens, 22 mm, round, plastic, lock number SSG10, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, key removal O+I Key-operated switches SIRIUS ACT for meeting higher demands for access security.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Various locking systems (Siemens, BKS, RONIS, OMR, IKON), 2/3 switch positions, latching/momentary-contact operation, various key removal positions.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Parametry
Množství: 1 ks
Rozměry: (š x v) 29.5 mm x 29.5 mm
Barva: černá
Vnější výška: 29.5 mm
Vnější šířka: 29.5 mm
Krytí: IP66 · IP67 · IP69K
Připojení (součástky): externí kontaktní prvek
Typ osvětlení: žádné
Potisk (motiv): žádný
Polohy elektronického zámku: zamčeno/odemčeno
Vlastnosti přepínače/tlačítka: plastový přední prstenec
Funkce (přepínač/tlačítko): s aretací
Přepínací pozice: 1x vyp/zap
Spínací úhel: 1 x 50 °
Typ (výrobce): 3SU1000-5BF11-0AA0
Montážní průměr: 22 mm
Forma, tvar (typ): kulatý
Životnost (mechanická): 1 000 000
Splňuje RoHS: ano
Teplota (max.): +70 °C
Teplota (min.): -25 °C
ECLASS Feature Group ID: 27-37-12-13
ECLASS Feature System Name: ECLASS-9.1
ETIM FeatureGroupID: EC000222
ETIM System Name: ETIM-8.0
Kategorie produktu: klíčový spínač
Obsah dodávky
Vč. 2 klíčů.
Tento text byl přeložen strojově.
EAN: 4011209950627
