Kód: c_1431015

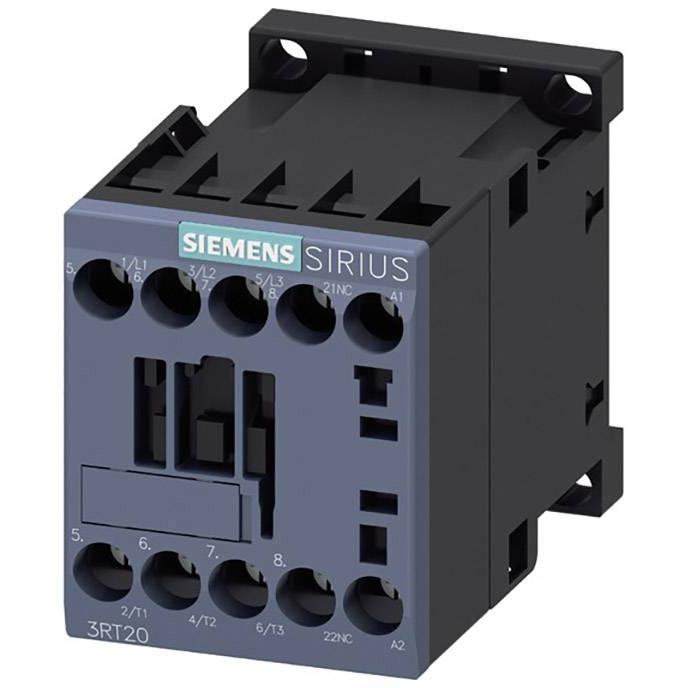

Power contactor, AC-3 12 A, 5.5 kW / 400 V 1 NC, 230 V AC, 50 / 60 Hz 3-pole, Size S00 screw terminal Power contactor SIRIUS 3RT2 for switching motors.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
Parametry
Množství: 1 ks
Rozměry: (š x v x h) 45 x 58 x 73 mm
Rozměr, hloubka: 73 mm
Vnější výška: 58 mm
Vnější šířka: 45 mm
Krytí: IP20
Pomocný kontakt: 1 rozpínací kontakt
Konstrukční velikost (relé): S00
Připojení (součástky): šroubová svorka
Typ kontaktu: 3 spínací kontakty
Druh montáže (relé): montážní lišta
Počet pólů (LOV): 3pólový
Vlastnosti relé: s pomocným kontaktem
Typ (výrobce): 3RT2017-1AP02
Jmenovité napětí: 230 V/AC
Zatěžovací proud: 12 A
Spínací napětí (max.): 400 V/AC
Výkon (max.): 5.5 kW
Životnost (mechanická): 3.0E7
Splňuje RoHS: ano
Teplota (max.): +60 °C
Teplota (min.): -25 °C
ECLASS Feature Group ID: 27-37-10-03
ECLASS Feature System Name: ECLASS-9.1
ETIM FeatureGroupID: EC000066
ETIM System Name: ETIM-8.0
Kategorie produktu: stykač
EAN: 4011209784994
