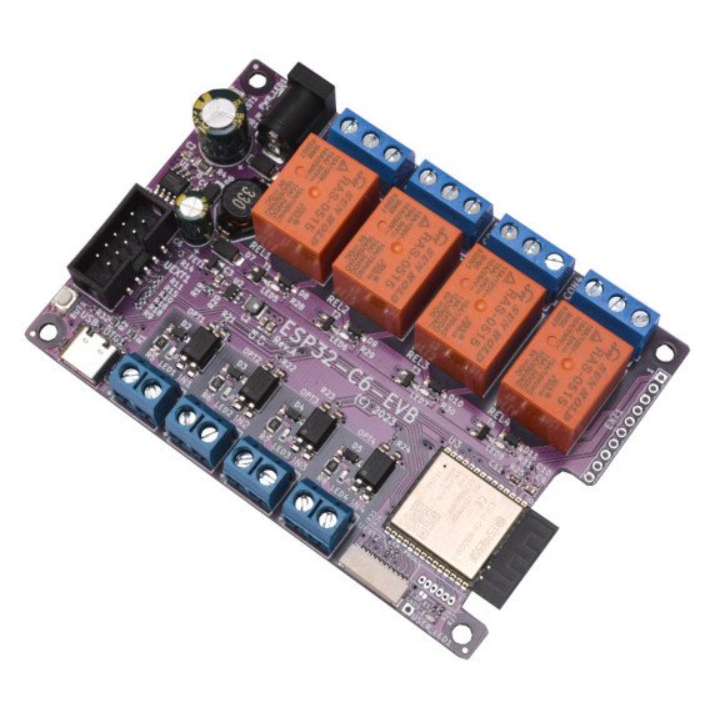

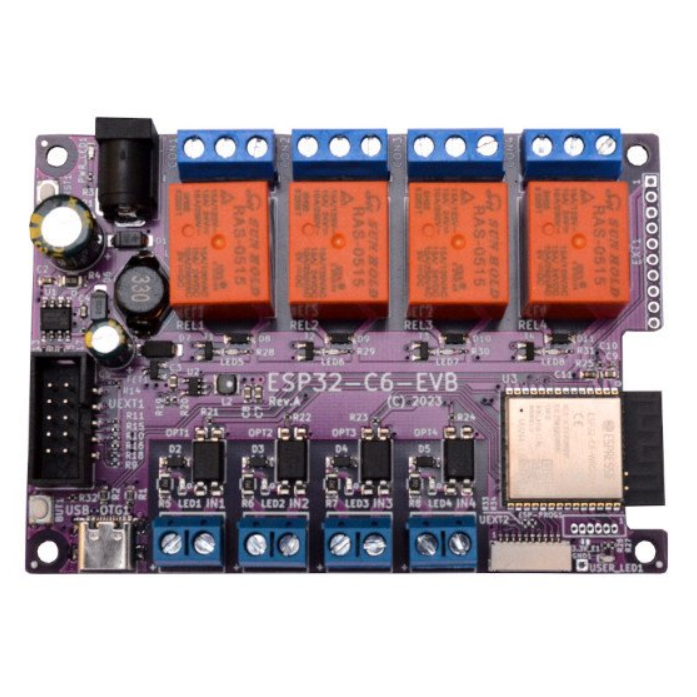

EspEasy, Home Assistant Olimex ESP32-C6-EVB vývojová deska s ESP32, 4xrelé, 4xoptoizolované vstupy

EspEasy, Home Assistant Olimex ESP32-C6-EVB vývojová deska s ESP32, 4xrelé, 4xoptoizolované vstupy
  • EspEasy, Home Assistant Olimex ESP32-C6-EVB vývojová deska s ESP32, 4xrelé, 4xoptoizolované vstupy
  • EspEasy, Home Assistant Olimex ESP32-C6-EVB vývojová deska s ESP32, 4xrelé, 4xoptoizolované vstupy
Cena nyní (s DPH):
840,- Kč
bez DPH
694,-

Toto zboží bohužel neumíme momentálně dodat v rozumném termínu, ale určitě u nás naleznete něco podobného. Zkuste to třeba v této kategorii: Nezařazené

Pokud chcete zjistit přesnou dostupnost, kontaktujte nás na emailu [email protected]

    Kód: a_112861

  • ESP32-C6 is Espressif’s first Wi-Fi 6 (IEEE 802.11ax) SoC integrating 2.4 GHz Wi-Fi 6, Bluetooth 5 (LE) and the 802.15.4 low-rate wireless personal area network (LR-WPAN) protocol which is the basis for the Zigbee, ISA100.11a, WirelessHART, MiWi, 6LoWPAN, Thread, and SNAP specifications.   FEATURES ESP32-C6-WROOM-1-N4 module with 32-bit RISC-V single-core microprocessor, up to 160 MHz, Flash: 4MB, ROM: 320 KB, HP SRAM: 512 KB, LP SRAM: 16 KB USB-C connector for powering, programming, and JTAG debugging Power jack for optional external power (8-50)V DC Four Relays: 10A/240VAC Four opto-isolated inputs for DC voltage up to 30VDC Two UEXT connectors (0.1" step one and JST one) Extension GPIO connector Reset button User button Wide range of power supply: 8-50VDC Programming connector suitable for ESP-PROG Four mount holes Four rubber pads included Dimensions: (100 x 70)mm ~ (3.94 x 2.76)" DOCUMENTS ESP32-C6-EVB users manual ESP32-C6-EVB CE Declaration of Conformity ESP32-C6-EVB UKCA Declaration of Confirmity HARDWARE ESP32-C6-EVB schematic in PDF format 2D board dimensions ESP32-C6-EVB KiCAD source files SOFTWARE Demo project, refer to the instructions Supported in ESP32 package for Arudino IDE and this board has own entry and configuration COMMUNITY 3D printed case STL files FAQ ESP32-C6-EVB appears to connect and disconnect from USB and some of the relay LEDs appea to blink. Is this normal behavior? This is the expected behavior when the board's memory is empty. Force the board in upload/bootloader mode manually: - Press and hold button BUT1 - Press and release button RST1 - Release button BUT1 What software should I use to program this board? ESP-IDF or Arduino package for ESP32 ESP32-C6-EVB doesn't seem to send data to the serial? The board uses built-in USB OTG, make sure to enable the USB for CDC purposes in your software tools. For example, in Arduino IDE you can enable the USB CDC, from "Tools" menu.
    ESP32-C6 is Espressif’s first Wi-Fi 6 (IEEE 802.11ax) SoC integrating 2.4 GHz Wi-Fi 6, Bluetooth 5 (LE) and the 802.15.4 low-rate wireless personal area network (LR-WPAN) protocol which is the basis for the Zigbee, ISA100.11a, WirelessHART, MiWi, 6LoWPAN, Thread, and SNAP specifications.



    FEATURES




    • ESP32-C6-WROOM-1-N4 module with 32-bit RISC-V single-core microprocessor, up to 160 MHz, Flash: 4MB, ROM: 320 KB, HP SRAM: 512 KB, LP SRAM: 16 KB

    • USB-C connector for powering, programming, and JTAG debugging

    • Power jack for optional external power (8-50)V DC

    • Four Relays: 10A/240VAC

    • Four opto-isolated inputs for DC voltage up to 30VDC

    • Two UEXT connectors (0.1" step one and JST one)

    • Extension GPIO connector

    • Reset button

    • User button

    • Wide range of power supply: 8-50VDC

    • Programming connector suitable for ESP-PROG

    • Four mount holes

    • Four rubber pads included

    • Dimensions: (100 x 70)mm ~ (3.94 x 2.76)"





    DOCUMENTS







    HARDWARE







    SOFTWARE







    COMMUNITY









    FAQ




    • ESP32-C6-EVB appears to connect and disconnect from USB and some of the relay LEDs appea to blink. Is this normal behavior?

    • This is the expected behavior when the board's memory is empty. Force the board in upload/bootloader mode manually:

      - Press and hold button BUT1

      - Press and release button RST1

      - Release button BUT1






    • ESP32-C6-EVB doesn't seem to send data to the serial?

    • The board uses built-in USB OTG, make sure to enable the USB for CDC purposes in your software tools. For example, in Arduino IDE you can enable the USB CDC, from "Tools" menu.
