Kód: c_254892

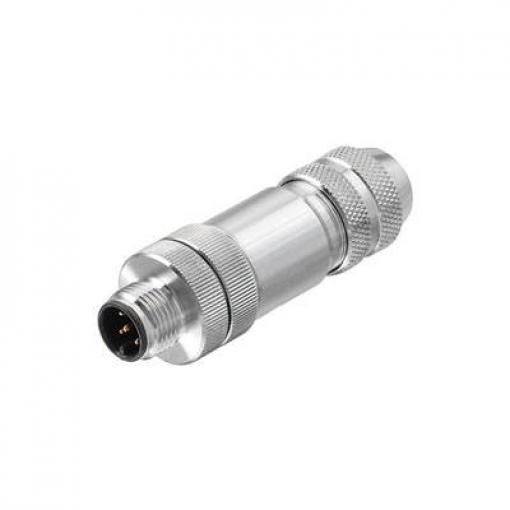

Individual cable lengths are often required nowadays. In order to meet these demands, Weidmüller offers a wide range of plug-in connectors for custom assembly.br/Male plugs and female socket for customisable assembly for M8, M12, M16 and 7/8" connections which are highly robust and ideally suited to machine engineering, for instance. The M12 plug-in connectors offer a choice of 5 different connection systems.br/The solder connection provides high contact density on a small area. With this technology the stripped conductor is soldered to the contacts, producing good electrical conductivity.
Parametry
Množství: 1 ks
Jmenovitý proud - filtr: 1 A
Krytí: IP67
Připojení (součástky): pájené
Strana připojení A (Sensor Aktor): zástrčka M12, rovná
Strana připojení B (senzor, aktuátor): přizpůsobitelná
Typ upevnění: šroubovací
Počet pólů: 12
Typ závitu, šířka připojení: M12
Číslo výrobce: 1924950000
Typ (výrobce): SAIS-12/9-(TL)
Jmenovitý proud: 1 A
Jmenovité napětí: 30 V
Průřez připojovacího vodiče (max.): 0.25 mm²
Provedení konektoru: zástrčka, rovná
Splňuje RoHS: ano
Teplota (max.): +80 °C
Teplota (min.): -25 °C
Kategorie produktu: neupravený zástrčkový konektor pro senzory - aktory
EAN: 4032248565757
